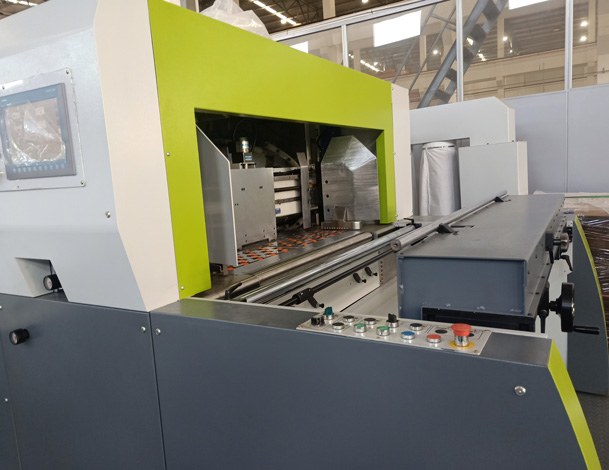

ECUT 1450

LEAD EDGE FEEDER

Bottom wheel-type suction box, equipped with air blower and automatic damper, to make the air volume adjustable by frequency converter;
Movable back gauge with up and down adjustable sheet supporting pate

DIE CUTTING SECTION

High strength die-cutting frame;
High precision mobile platen and driver;
Die-cutting station safety door plus electrical and mechanical safety system;
Die chase positioning and automatic locking system, centerline system making the cutting die and stripping die centered quickly and precisely;
Synthetic supporting plate positioning and safety locking system, cutting plate micro-adjustment system;
Pneumatic clutch/break and safety control system;
Motorized pressure adjustment system and indication of die cutting pressure by means of digital read out;
Gripper bar and driving chain;
Gripper bar chain guide rails are made of synthetic materials;
High quality index unit and gears for gripper bars;
Overloading protection torque limit system for gripper bars and chains

STRIPPING SECTION

Center line system for quick stripping die set up and change over, upper + lower frames;
Fully open-type upper stripping frame, and front/back micro-adjustment system for upper stripping tools;
Push button of gripper opening is added for easy taking out the production sample at stripping section

DELIVERY SECTION

Escalator delivery table with bracket support;
Conveyor belt bundle delivery table can be prepared for future connection with breaker for automatic in line operation;
Non-stop auxiliary delivery table;
Batch delivery conveying control system;
Electrical batch counter;
Front jogger device;

TOP FEEDER

Manual non-stop feeding system (Automatic non-stop feeding system can be chosen as optional);
Adjustable side blower with scale indication;
Suction head multi direction adjustment system;
Safety photo sensor system at feeding table;
Main feeding table motorized side shift with centering function when it is at low position;
Feeder head with motorized up and down adjustment;
Self-adaptive system to adjust the height of the suction head adapted to the pile height in machine operation;

SIDE POSITIONING SECTION

Anti-static stainless steel transport table;
Transport belt systme with side guide and automatic tension function;
Double sheet detector (ultrasonic double sheet detector can be chosen as optional for thin paper);
Upper sheet pressing frame with lifting device (Automatic lifting device can be chosen as optional);
Sheet pressing device can be adjusted as a whole to adapt to different types of paper, cardboard and corrugated board;
Sheet feeding phase adjustment and sheet slow down device to make different types of sheet better adapt to the requirements of gripper bar bite and front gauge;
Mechanical push and pull side guide;

DIE-CUTTING SECTION

High strength die-cutting frame, optimized to distribute pressure evenly;
High precision mobile platen and driver;
Die-cutting station safety door plus electrical and mechanical safety system;
Die chase positioning and automatic locking system, centerline system making the cutting die and stripping die centered quickly and precisely;
Synthetic supporting plate positioning and locking system, cutting plate micro-adjustment system (automatic locking system can be chosen as optional);
Pneumatic clutch/break and safety control system;
Motorized pressure adjustment system (die cutting pressure detection and display system can be chosen as optional);
Gripper bar and driving chain;
Gripper bar chain guide rails are made of synthetic materials;
High quality index unit and gears for gripper bars;
Overloading protection torque limit system for gripper bars and chains;
Photo sensor detection system when gripper bar and sheets arrive and depart;
Left and right front lay locking blocks, separate adjustments available;
Automatic forced lubrication system recycles fluid and is equipped with oil gauge and interruption alarm;
Automatic main drive chain lubrication.

STRIPPING SECTION

Center line system for quick stripping die set up and change over, upper and lower frames;
Fully open-type upper stripping frame, and front/back micro-adjustment system for upper stripping tools;
Push button of gripper opening is added for easy taking out the production sample at stripping section;
Lower stripping pin system;
Front edge waste removal system and center line system for quick setup and changeover of front edge waste stripping tool;
Full stripping with/without lead edge waste stripping convertible by one button, no tool change, more operator friendly and safe operation;
Safety door at stripping station; electrical and mechanical safety system.

DELIVERY SECTION

ELECTRCALS
