Flatbed Die Cutters

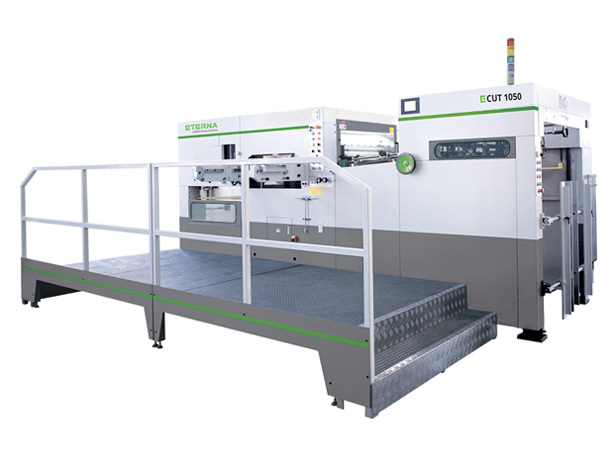

Stock Range : Cardboard: 80-600 g/m²
Corrugated board: thickness ≤ 4mm
Max. Sheet Size : 1050 × 750 mm
Min. Sheet Size : 400 × 360 mm
Max. Mechanical speed : 7500 s/h
Max. Cutting Pressure : 300 T
Stable & High speed
- Preloading device; Non-stop feeder and delivery
- Double sheet detector ; Accurate Side lay & Front lay
- Precision worm gear crank toggle driving system
- Triple movement of stripping frames
- Complete lost-sheets control throughout the entire machine
Durable
- Double cam driven gripper opener and front lay swing frame
- High quality gripper bar and pre-stretched gripper chain (IWIS)
- Key components’ suppliers certified by the Group
- Easy maintenance
Safety
- Gripper bar safety lock device
- Torque limit safety clutch
- Photo sensor safety barrier at pallet table
- CE standard safety system for safe Operation
- Emergency stop at arm length
Stock Range : Cardboard: 80-600 g/m²
Corrugated board: thickness ≤ 4mm
Max. Sheet Size : 1050 × 750 mm
Min. Sheet Size : 400 × 360 mm
Max. Mechanical speed : 7500 s/h
Max. Cutting Pressure : 300 T
Stable & High speed
- Preloading device; Non-stop feeder and delivery
- Double sheet detector ; Accurate Side lay & Front lay
- Precision worm gear crank toggle driving system
- Triple movement of stripping frames
- Complete lost-sheets control throughout the entire machine
Durable
- Double cam driven gripper opener and front lay swing frame
- High quality gripper bar and pre-stretched gripper chain (IWIS)
- Key components’ suppliers certified by the Group
- Easy maintenance
Safety
- Gripper bar safety lock device
- Torque limit safety clutch
- Photo sensor safety barrier at pallet table
- CE standard safety system for safe Operation
- Emergency stop at arm length
Stock Range : Cardboard: 80~2000 g/m²
Corrugated board: thickness≤4mm
Max. Sheet Size : 1060 × 760 mm
Min. Sheet Size : 400 × 360 mm
Max. Mechanical speed : 7500 s/h
- High performance, smooth running, low noise level, high safety features and easy to operate;
- Fully automatic non-stop feeder and preloading capabilities to boost productivity;
- Utilizing best alloy steel material at all critical points to enhance the durability and precision of the machine;
- Protective stops when oil or air pressure is below designed level;
- Hardened steel plate is both precise and durable;
- Entire travel path has no sharp corner to avoid any scratches;
- The specially designed three cam Index System runs extra smoothly;
- Sensors throughout the machine constantly monitoring every aspect of the operation and displaying any relevant information on large and sharp display, in the event of any equipment or operation fault.
Stock Range : Cardboard: 90~1000 g/m²
Corrugated board: Up to 4mm
Max. Sheet Size : 1060 × 760 mm
Min. Sheet Size : 400 × 350 mm
Max. Mechanical speed : 8000 s/h
High Precision
- Short stroke movable platen, driven by eccentric worm gear and toggle mechanism allows large motion angle (265 degree)
- 3-cam index gripper bar drive system to ensure smooth intermittent movement
- Eccentric worm gear for balanced die-cutting pressure
- Stationary middle stripping frame
- Center-line system throughout the entire machine
High Efficiency
- High speed feeder with solenoid controlled suction
- Non-stop feeder and delivery
- Double sheet detector ; Accurate Side lay & Front lay
- Triple movement of stripping frames
- Optimized micro-adjustment system of cutting plate
- One-button quick locking device for the upper tool integrated in the machine
Safety
- Gripper bar safety lock device
- Torque limit safety clutch
- Photo sensor safety barrier at pallet table
- CE standard safety system for safe operation
- Emergency stop at arm length
Stock Range : Cardboard: 90~1000 g/m²
Corrugated board: Up to 4mm
Max. Sheet Size : 1060 × 760 mm
Min. Sheet Size : 400 × 350 mm
Max. Mechanical speed : 7500 s/h
High Precision
- Short stroke movable platen, driven by eccentric worm gear and toggle mechanism allows large motion angle (265 degree)
- 3-cam index gripper bar drive system to ensure smooth intermittent movement
- Eccentric worm gear for balanced die-cutting pressure
- Stationary middle stripping frame
- Center-line system throughout the entire machine
High Efficiency
- High speed feeder with solenoid controlled suction
- Non-stop feeder and delivery
- Double sheet detector ; Accurate Side lay & Front lay
- Optimized micro-adjustment system of cutting plate
- One-button quick locking device for the upper tool integrated in the machine
- Reduce labor cost
- Produce the special job with high speed
Safety
- Gripper bar safety lock device
- Torque limit safety clutch
- Photo sensor safety barrier at pallet table
- CE standard safety system for safe operation
- Emergency stop at arm length
